Physics 2000: Resonance Feature Summary

Type:
Physics in Your World
Title:
Dipole Antenna
Description:

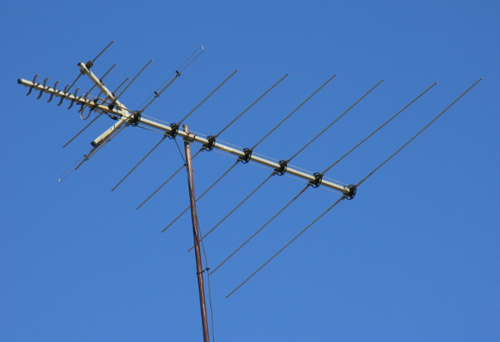

A typical TV antenna such as this one (hi-res version) is a resonant system--the transverse arms are half a wavelength long at the frequencies of the traditional broadcast TV channels. The smaller sets of transverse arms are for higher frequency (UHF) channels. For more on resonance, see Standing Wave Resonance. To read about a new kind of antenna, visit Fractal Antenna Design.

(This feature was updated on July 10, 2013.)
Image:
image credit: Ed Lee
image credit: Ed Lee
Image URL:
http://www.compadre.org/Informal/images/features/TV-antenna-large-4-23-07.jpg
Featured:
May 16, 2007 - June 1, 2007
